GAZELLE BUSINESS DROP-SIDE TRUCK

Full specifications

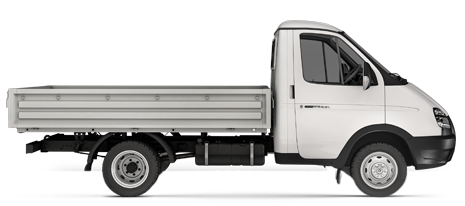

3 seats Standard 2+1

2 066^mm

2 120^mm

1 700^mm

5 540^mm

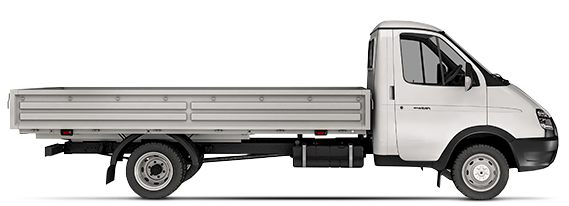

3 seats Extended 2+1

2 066^mm

2 120^mm

1 700^mm

6 619^mm

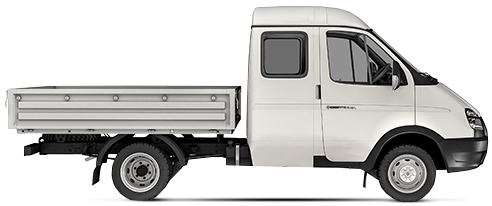

6 seats Standard 5+1

2 066^mm

2 120^mm

1 700^mm

5 540^mm

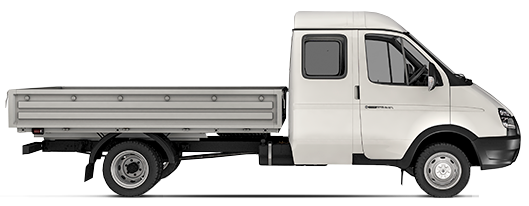

6 seats Extended 5+1

2 066^mm

2 120^mm

1 700^mm

6 619^mm

3 seats
Standard
2+1

3 seats Standard 2+1

3 seats
Standard
2+1

3 seats Extended 2+1

3 seats
Extended
2+1

6 seats Standard 5+1

6 seats
Standard
5+1

6 seats Extended 5+1

6 seats
Extended
5+1

Models

PARAMETERS	Standard platform	Extended platform	Standard platform	Extended platform
Number of seats	2+1	2+1	5+1	5+1
Passenger capacity	2	2	5	5
Axle configuration	4×2	4×4	4×2/4x4	4x2
Drive type	Rear	Rear	Rear	Rear
GVW, kg	3500	3500	3500	3500
Curb weight, kg***	1990/2160	2155	2105/2290	2160
Distribution of road load of GVW vehicle through tires, kg*** Front wheels Rear wheels	1320/1500 2180/2000	1410 2090	1380/1590 2120/1910	1465 2035
Wheelbase, mm	2900	3500	2900	3500
Wheel tread: Front, mm Rear (between the centers of double tires), mm	1700 1560	1700 1560	1700/1720 1560/1560	1700 1560
Clearance (below the rear axle housing @ GVW), mm	170/190	170	170/190	170
Minimum turning radius by the outside front wheel tread, m	5.5/6.5	6.7	5.5/7.5	6.7
Maximum speed on a horizontal smooth highway, km/h***	130/120	130	130/120	130
Overhang angles (under load) Front, degrees Rear, degrees	22/29 24/27	22 17	22/29 24/27	22 23
Maximum uphill gradient using the main fuel type under full load, %	26/30	26	26/30	26
Loading height, mm	960/1060	960	960/1060	960
Internal body dimensions, mm Length Width Height	3089 1978 400	4168 1978 400	2339 1978 400	2339 1978 400
Gearbox	5-speed, manual	5-speed, manual	5-speed, manual	5-speed, manual
Fuel tank capacity, l	80	80	80	80
